Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Schroder Drain Inspection Camera
  • Model Number: SD-1050II Drain Inspection Camera
  • Type: Digital Camera
  • Style: Drain Inspection Camera
  • Sensor: CCD
  • Technology: Pan / Tilt / Zoom
  • Special Features: Waterproof / Weatherproof
  • Camera head diameter: 50mm
  • Drain Inspection Camera Resolution: 480TVL
  • Drain Inspection Camera CCD type: SONY CCD
  • Pan and tilt: 360 degree 180 degree
  • Drain Inspection Camera Waterproof: IP68
  • Size of the screen: 5.7" TFT Monitor
  • Drain Inspection Camera Cable length: 30-140m optional
  • Drain Inspection Camera Skids: 3 sets different type of skids
  • Changeable battery: DC12V/14.8V 13500mah
  • Warranty: 12 months

Packaging & Delivery

Packaging Details: One industrial ABS case + One carton with foam. 52-82KG/set (depend on the cable length) For Drain Inspection Camera
Delivery Detail: 7 working days for Drain Inspection Camera

Pan and Tilt Drain Camera For Sale SD-1050II



Application

This push camera is usually for pipes diameter from 60mm to 400mm.

Model

SD-1050II Drain Inspection Camera

Camera

Drain Inspection Camera

CCD Type

SONY CCD

Horizontal resolution

480TVL

Diameter

50mm

Pan &Tilt

Pan: 360degrees; Tilt: 180degrees

Auto level

Auto

Drain Inspection Camera

Focus

Manual

Optical system

2.8mm

LED Lights

LED Lights

Bright 18 pcs  LED SMD

Brightness of the LEDS

Controllable

Display&Storage system

Size of the screen

5.7’’ TFT Monitor

Drain Inspection Camera

Brightness

500cd/m2

Drain Inspection Camera

Resolution

640*480

Drain Inspection Camera

Video format

MPEG4/AVI

Drain Inspection Camera

Picture format

MPEG

Memory card

4G(up to 32G)

USB interface

USB output

Character input

Video

Drain Inspection Camera

Resolution

720*576

Meter counter

The distance will be displayed on the screen (Optional)

Cable

Length

30-140m (optional)

Bracket

Centering

To make sure the camera is in the center of the pipe

Power supply

Drain Inspection Camera

chargeable Battery

DC12V/14.8V 13500mah





Drain Inspection Camera Applications:



Our push cameras are very useful for inspection of  pipeline, sewer pipe, normal pipeline, broken pipe, tank, vessels, Ventilation tube and so on.





50mm Drain Inspection Camera Head :



























Drain Inspection Camera head with skids:



Equipped with 3 sets  different type of skids to ensure the Drain Inspection Camera is in the center of the pipe.



















Transmiter  is Optional





















Flexible Spring:



















5.7'' TFT Display can input characters:























 Glass fiber cable : 30-140m optional













 Cable drum with cable drum: 30-140m Optional





















Whole set:  One Set P50 push Drain Inspection Camera with 3 sets brackets (70mm,150mm,250mm)



Packing : One industrial ABS  case + One carton with foam. 52-82KG/set (depend on the  cable length)



















Certificates

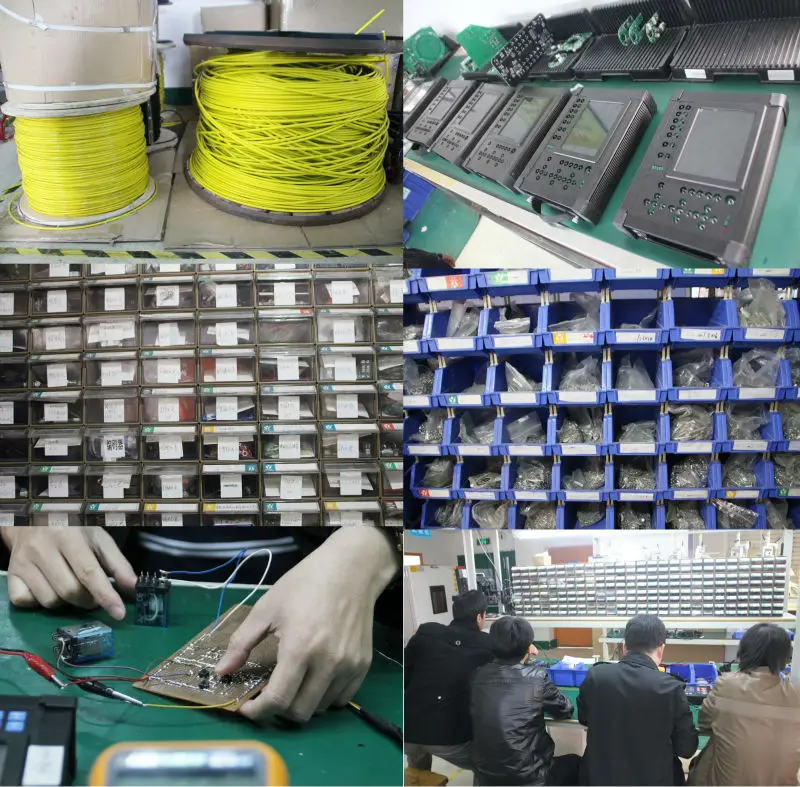

Our workshop:









Our products:



Borescope               Push rod camera         Robot camera           Manhole camera
